Smedge has moved on. Now you can get the ease of use of Smedge 2 with the power of Smedge 3 in the new Smedge. Check out the Smedge Downloads page to download the updated Smedge for Windows, Mac, or Linux and get started right away.

See Robin's homepage.

Products Available To Render

3ds max (6.0+)	Alias Renderer	Lightwave	MentalRay
3ds max (via SFRender)	Chalice	Maya(5.0 or earlier)	MentalRay for Maya (5.0 or earlier)
After Effects	Digital Fusion	Maya (6.0+)	MentalRay for Maya (6.0+)
Air	Generic Scripts	Maya Vector Renderer (5.0)	Rayz
Alias PowerCaster	Houdini	Maya Vector Renderer (6.0+)	Shake
Alias PowerTracer	imgcvt	Maya Hardware Renderer (6.0+)	SoftImage
Alias Raytracer	Jig	MayaMan	XSI

This generates a job specifically for MentalRay.

To create a MentalRay job via commandline, you can use the following parameters for the -product switch (case is ignored):

MentalRay
Ray
MR

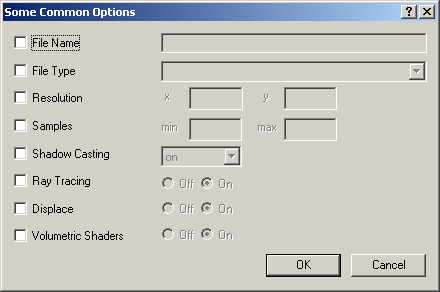

With MentalRay, you can use the Common Render Options dialog box.

File Name	Will add the -file_name switch and the text that you type for the rendered images' filenames
File Type	Will add the -file_type switch and the text that you type for the rendered images' file type. You can chose from a list of the file types that MentalRay supports.
Resolution	Will add the -resolution switch and the numbers you type into the fields for the X and Y pixel sizes of the rendered images.
Samples	Will add the -samples switch and the numbers for the minimum and maximum sample sizes for the renderer to use
Shadow Casting	Will add the -shadows switch and the option you select from the list. You can select "on" "off" "sort" or "selected".
Ray Tracing	Will add the -trace switch with the appropriate option to turn on or off ray tracing.
Displace	Will add the -displace switch with the appropriate option to turn on or off displacement rendering.
Volumetric Shaders	Will add the -volume switch with the appropriate option to turn on or off the rendering of volumetric shaders.
